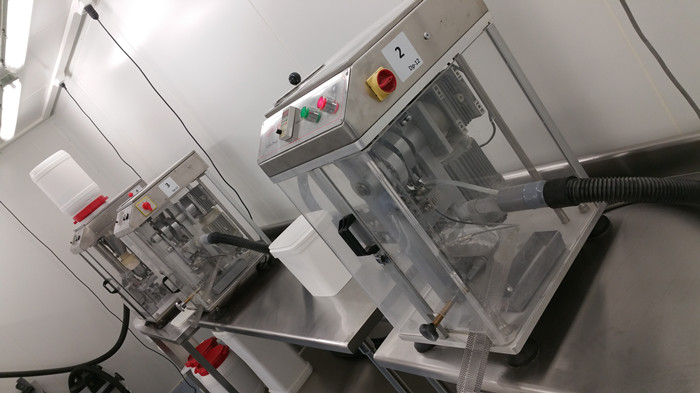

Stainless Steel DP Series Single Punch Lab Tablet Press Machine

Stainless Steel DP Series Single Punch Lab Tablet Press Machine Quick Details:
- speed adjustable
- max 12mm tablet diameter
- max pressure is 50KN

Working principle
The machine presses tablets by the reciprocating movement of lower and upper punch. The lowest position of the lower punch, as well as the filling amount, can be set by adjusting the filling wheel, as well as the filling amount. The upper punch position, as well as the thickness and hardness of the tablets, can be set by adjusting the gear shaft.
The main motor revolves the main shaft and eccentric cam through turbo retarder; and the eccentric cam drives the upper punch reciprocating movement; the main shaft drives the double cams rotating, which drives the feeding mechanism, tablets output structure and lower punch reciprocating movement through the connecting rod. The upper punch, lower punch, feeding mechanism and tablets output structure moves harmoniously to realize the process of feeding, pressing and tablets outputting.
The process of tables forming: material is feed into the centre die by the feeding mechanism when the lower punch is in the lowest position. When the feeding mechanism moves away, the upper punch moves downwards, pressing the material in the centre die cavity into form; when the upper punch moves to the deepest position, it moves upwards continuously, then the lower punch moves upwards subsequently. When the upper punch moves out of the centre die cavity, the lower punch pushes the formed tablets out of the centre die cavity; the tablets will be pushed out by the feeding bottom fringe through the movement of feeding mechanism; at the same time, the lower punch reaches the lowest position, ready for the next cycle.
Technical parameter:

FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Shanghai Chongming island. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.
During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. STH recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Need more machines details and videos? Please contact us directly!

Our Company:
STH is a professional manufacturer and supplier of pharmaceutical and food chemicals machinery and equipment in China.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press machine, soft-gel production line, granulator, mixer, dryers, pulverizer, packaging machine,soft and hard blister packing machine, capsule filling machines, cartoner etc.

We made the Standard, we beyond it. Welcome you come to STH for visiting and guiding.
