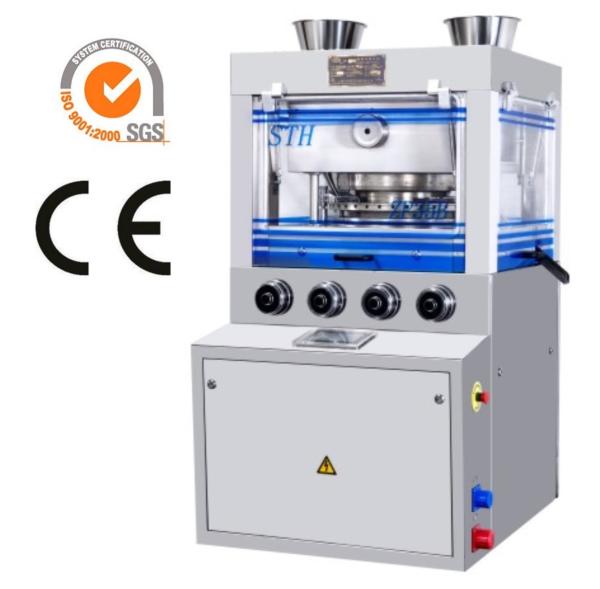

    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : ZP35B
    Certification : CE, ISO, GMP
    Price : Negotiation
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical

    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical


    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical Quick Details:

    - max tablet size is 16mm

    - high output 15,000 tablets per hour

    - adopt TSM type, EU type or Chinese type tooling

    - herbal tablet

    - with pre-pressure


    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical Application

    This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

    This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.


    13mm Round shape Rotary Tablet Press Machine For Pharmaceutical Feature

    • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    • Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
    • PLC and touch screen control, speed adjustable by frequency inverter, all the running parameter can be set and shown.
    • With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets.
    • Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
    • ZP39i is upgraded model from ZP35B, its output is increased about 15% more than ZP35B.
    • Force feeder is optional on the machine.

    Technical sheet

    ModelZP39iZP37BZP35B
    Number of Stations393735
    Tooling StandardZP
    Max Main Pressure (KN)80
    Max Pre-pressure (KN)10
    Max Tablet Diameter (mm)round tablet13
    irregular tablet16
    Max Filling Depth (mm)15
    Max Tablet Thickness (mm)6
    Max Turret Speed (r/min)36
    Max Production Capacity (pcs/h)168000160000151200
    Motor Power (kw)4
    Overall Size (mm)1160×1070×1720
    Machine Weight (kg)2000

    FAQ

    Q: Where is your factory? How can I visit your factory?
    A: Our factory is located In Shanghai Chongming island. We warmly welcome you to visit our factory if you have a travel plan.

    Q: How can I know your machine is designed for my product?
    A: If you don't mind, you can send us samples and we will test on machines.
    During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

    Q: How about the after service and guarantee period?
    A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. STH recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

    Need more machines details and videos? Please contact us directly!


    Our Company:

    STH is a professional manufacturer and supplier of pharmaceutical and food chemicals machinery and equipment in China.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press machine, soft-gel production line, granulator, mixer, dryers, pulverizer, packaging machine,soft and hard blister packing machine, capsule filling machines, cartoner etc.


    We made the Standard, we beyond it. Welcome you come to STH for visiting and guiding.
