1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System

    Buy cheap 1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System from wholesalers

    Buy cheap 1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System from wholesalers
    • Buy cheap 1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System from wholesalers
    • Buy cheap 1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System from wholesalers
    • Buy cheap 1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System from wholesalers

    1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : GZPK370-32
    Certification : CE, ISO, GMP
    Price : Negotiation
    Supply Ability : 20 units per year
    Delivery Time : 60 - 90 days
    • Product Details
    • Company Profile

    1400000 Pills/Hour Rotary Tablet Press Machine With Online Weighing System

    1400000 pills/hour Rotary Tablet Press Machine with online weighing system​


    1400000 pills/hour Rotary Tablet Press Machine with online weighing system​ Quick Details:

    - 100KN main pressure and 20KN pre-pressure

    - high output 200,000 tablets per hour

    - adopt TSM & EU type tooling

    - working stable and easy operation

    - online tablet weighing and rejection


    1400000 pills/hour Rotary Tablet Press Machine with online weighing system​ Application

    This machine is one kind of single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

    This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.


    1400000 pills/hour Rotary Tablet Press Machine with online weighing system​ Feature:

    • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    • Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
    • Speed adjustable by frequency inverter, the motor is fixed on the base plate, prevent the motor vibrating during working.
    • The upper and lower guide rails and punches are lubricated with an intermittent fixed low flow rate automatic lubricating system so as to reduce the wear of guide rails.
    • Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
    • A high precision pressure sensor is equipped with an amplifier provided with gaining and self-checking functions so as to implement self-checking of tablet compression pressure reliably. The tablet weight control system is easy to operate and provided the function of rejecting degraded tablets in batches or individually.
    • Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.

    Technical Parameters:

    ModelGZPK-26GZPK-32GZPK-40GZPK-44
    Number of Stations26324044
    Tooling StandardDBBBBBS
    Max Main Pressure (KN)80
    Max Pre-pressure (KN)20
    Max Tablet Diameter (mm)round tablet25181311
    irregular tablet25191613
    Max Filling Depth (mm)16
    Max Tablet Thickness (mm)6
    Max Turret Speed (r/min)90100110110
    Max Production Capacity (pcs/h)140000192000264000291000
    Motor Power (kw)7.5
    Overall Size (mm)1380×1200×1900
    Machine Weight (kg)1750

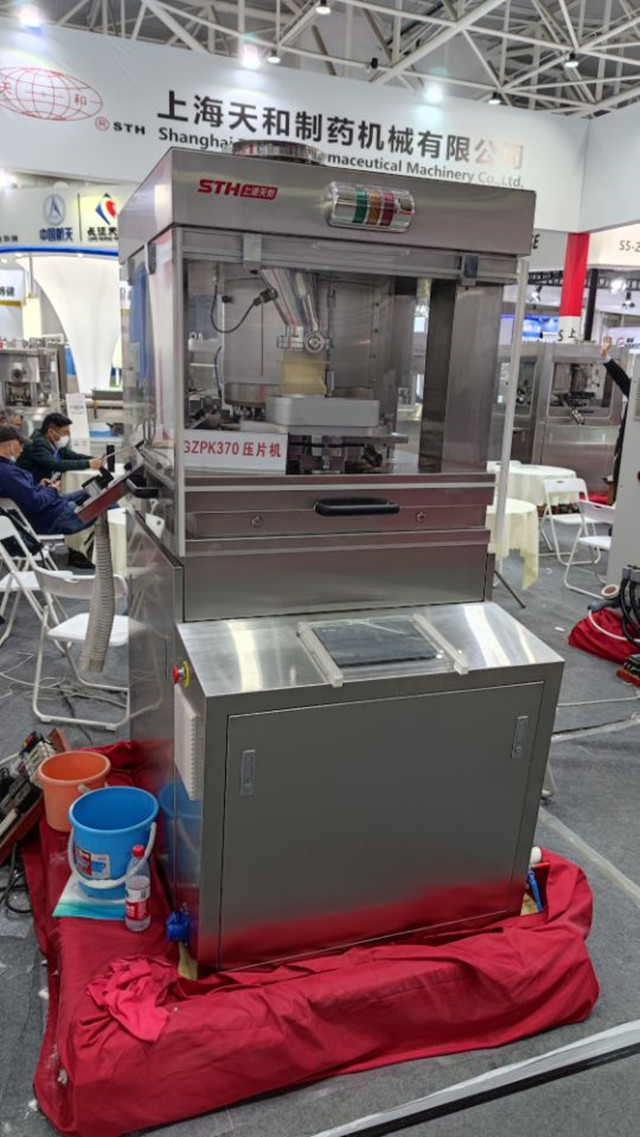

    Machine Photo


    Our Service:


    Installation and after sales service:

    Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you.


    Warranty Period:

    There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.


    After Sales Service:

    1. We have 24 hours hot line for technical support.

    2. We get 18 hours internet line for technical support.

    3. Video camera in workshop to help you adjust and solve machine problem in working situation.
