    TIANHE 2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : EYH-2000
    Certification : CE, ISO, GMP
    Price : Negotiation
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    TIANHE 2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical

    2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical


    2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical Quick Details:

    - The structure of this machine is unique.

    - Its mixing efficiency is high and no dead corner.
    - It is made of stainless steel 304 /316L.

    - Its inner and outer walls are processed through polishing.

    - Its appearance is beautiful. Its mixing is uniform.

    - Its scope of application is wide


    2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical Main Application :
    The mixer is suitable for mixing of dry granule materials in pharmaceutical,chemical and foodstufff industries,especially for those in high tonnage.
    Working Principle:
    The mixing tank is a cylinder-shaped barrel without and stirring device inside,which make the self-rotation around ix axis and also produces reversible swing movement around its horizontal axis at the same time.It is featured with short mixing time,good uniformity,big output,convenient to discharging,etc.It is great for prompt,even and vast mixing.


    2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical WORKING PRINCIPLE

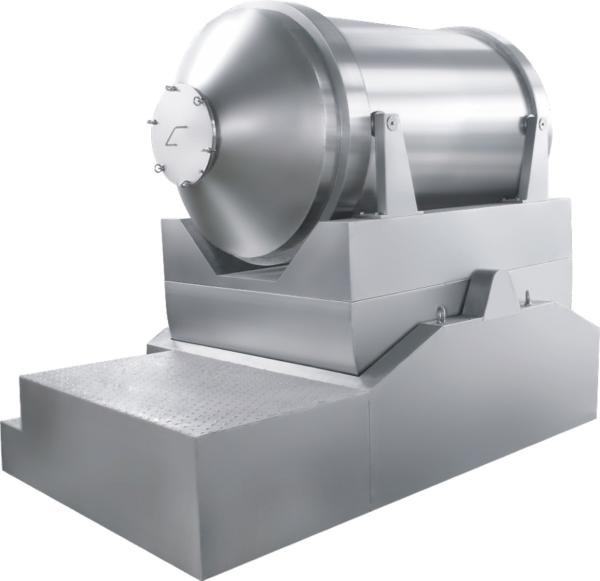

    EYH Series 2D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.

    2000L 2D Two dimensional Swing Blending Mixing Machine Food Chemical FEATURES
    EYH Series 2D Motion Mixer (2D mixer & 2D blender) can make two motions at the same time. One motion is the rotation of the cylinder and the other motion is swing of the cylinder along the swinging rack. The materials will be rotated when the cylinder is rotating and mixed when the cylinder is swinging left and right. As a result of two motions, materials can be fully mixed in a short time. This mixer is suitable for mixing of power and granule materials.


    Technical Parameters :

    ModelBarrel
    volume(L)
    Loading
    capacity(L)
    Max loading
    weigh(kg)
    No of swing&
    rotation
    Total motor
    power(W)
    Overall
    dimension(mm)
    Barrel
    weight(kg)
    weight(kg)
    EYH-60603020500.4700*730*110015115
    EYH-1501507550371.15800*1050*145050190
    EYH-300300150100301.15900*1350*155060340
    EYH-60060030020023.631170*1640*20501401150
    EYH-80080040028019.831320*1950*21502001600
    EYH-1000100050035019.831360*2040*23002401700
    EYH-1500150075052016.24.41580*2400*25503202000
    EYH-20002000100070016.27.41740*2600*27704302600
    EYH-300030001500105013.8111800*2900*29506203500
    EYH-400040002000140012.8131970*3300*33007004100
    EYH-600060003000210011.218.52300*2900*380011006100
    EYH-800080004000280010.4222540*4100*405014507900
    EYH-1000010000500035009302900*4500*44001650950


    Our Company:

    STH is a professional manufacturer and supplier of pharmaceutical and food chemicals machinery and equipment in China.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press machine, soft-gel production line, granulator, mixer, dryers, pulverizer, packaging machine,soft and hard blister packing machine, capsule filling machines, cartoner etc.


    We made the Standard, we beyond it. Welcome you come to STH for visiting and guiding.
