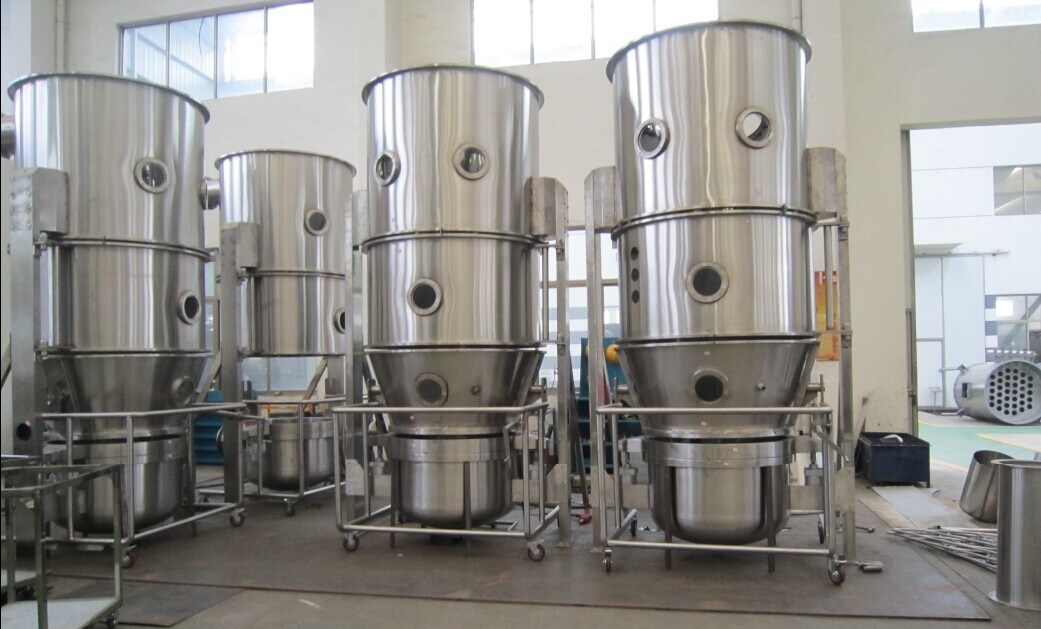

FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine

    Buy cheap FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine from wholesalers

    Buy cheap FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine from wholesalers
    • Buy cheap FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine from wholesalers
    • Buy cheap FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine from wholesalers

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : FL-200
    Certification : CE, ISO, GMP
    Price : Negotiation
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine Quick Details:
    1. fluidized granulating dryer
    2. mixing, granulating and drying
    3. releasing hole
    4. ISO, CE and GMP standard


    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine Application
    Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine
    Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
    Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
    Drying: powder or granule state of wet material
    Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine PRINCIPLE:
    The powder granule the container (fluidization bed) appear the state of fluidization, It is pre-heated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine Features:

    Because of powder Granulating, the flow property is improved and the dust is reduced;
    Because of powder Granulating, its solving property is improved;
    The mixing, Granulating and drying can be completed in one step inside the machine;
    The operation of equipment is safe because the antistatic filtering cloth is adapted;
    The operation personnel can not be damaged if explosion is taken place because there is releasing hole;
    The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.


    FL-200 Batch Type Pharmaceutical Fluidized Granulator Processing Machine Technical Parameters:

    ItemunitType
    35153060120200300500
    ContainervolumeL12224510022042067010001500
    diameterMM30040055070010001200140016001800
    CapabilityminKG1.5410153080100150250
    maxKG4.56204590160300450750
    Fancapacitym3/H100012001400180030004500600070008000
    pressureMM H2O375375480480950950950950950
    powerKW345.57.51118.5223045
    Steam expenditureKG/H15234270141211282366451
    Compressed air expenditurem3/min0.90.90.90.9111.11.51.5
    Weight of the main bodyKG500700900100011001500150018002000
    Steam pressureMPA0.3-0.6
    Temperatureadjustable at the range from room temperature to 120℃
    Working timeMINDecided in accordance with the properties of raw materials
    Field%≥99
    NoiseDB(A)When installation, main machine is separated from fan
    Size (L*W*H)M1.0*0.6*2.11.2*0.7*2.31.25*0.9*2.51.6*1.1*2.51.85*1.4*32.2*1.65*3.32.34*1.7*3.82.8*2.0*4.03*2.25*4.4






    Sapmles


    After Sales Service
    Installation and after sales service:
    Installing and Commission: We will install and test the machine in best working condition before shipment. Ifcustomer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 100 per day will be charged extra.
    Warranty Period:
    There is five year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
    After sales service:
    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
    2. We have 24hours hot line for Technical Support.
    3. We get 18hours internet line for technical support.
    4. Video camera in workshop to help you adjust and solve machine problem in working situation.
