High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical

    Buy cheap High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical from wholesalers

    Buy cheap High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical from wholesalers
    • Buy cheap High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical from wholesalers
    • Buy cheap High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical from wholesalers
    • Buy cheap High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical from wholesalers

    High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : GZP570
    Certification : CE, GMP, FDA, SGS
    • Product Details
    • Company Profile

    High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical

    High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical


    High Speed Automatic Medicine Tablet Compression Machine For Pharmaceutical Quick detail

    - Full automatic touch screen control

    - Punch type: D/B/BB/BBS

    - Automatic lubrication oil & grease system

    - Fooder feeder


    Application

    This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

    This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.


    Feature:

    • High speed with large quantity punches, double press rollers, suitable for mass production.
    • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    • Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
    • Automatic adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel.
    • Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
    • Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
    • High performance electrical control system, ensure each program processing precisely.
    • Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
    • Special oil proof, dust proof and noise proof design.

    Technical Parameter:

    ModelGZP-41GZP-51GZP-61GZP-65
    Number of Stations41516165
    Tooling StandardDBBBBBS
    Max Main Pressure (KN)100
    Max Pre-pressure (KN)40
    Max Tablet Diameter (mm)round tablet25181311
    irregular tablet25191613
    Max Filling Depth (mm)20181515
    Max Tablet Thickness (mm)10866
    Max Turret Speed (r/min)60
    Max Production Capacity (pcs/h)295200367200439200468000
    Motor Power (kw)7.5
    Overall Size (mm)1420×1200×1850
    Machine Weight (kg)3500

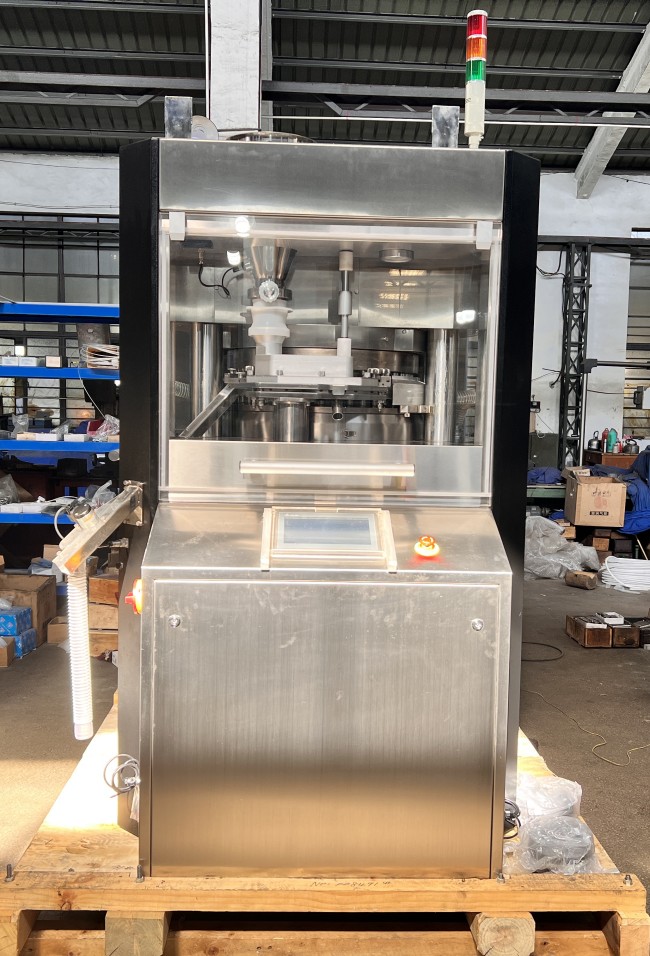

    Machine photo


    Detail information

    Force Feeder system Electric system


    Working area


    High ligth

    Distinguished by cost orientation with precision, quality and safety. It complies with all of the requirements in accordance with cGMP and FDA. Easy and flexible production, fast format change.
