    2 Dimensional Chemical Granule Mixer Blender With Vacuum Feeder

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : EYH Series
    Certification : CE GMP ISO
    Price : Negotiation
    Supply Ability : 50 Set /Sets Per Year
    Delivery Time : About 30-45 working days after payment
    • Product Details
    • Company Profile

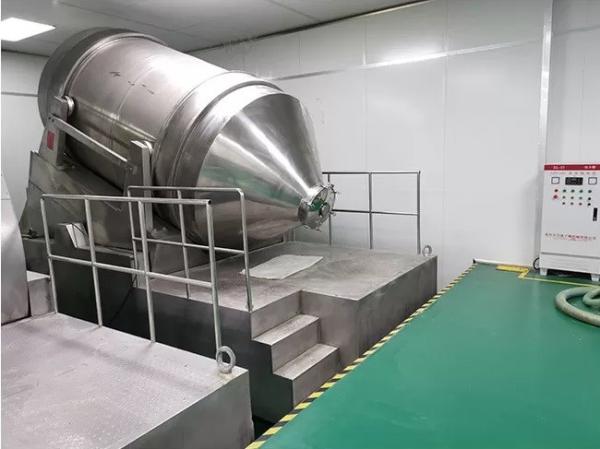

    2 Dimensional Chemical Granule Mixer Blender With Vacuum Feeder

    Large Volume EYH 2-Dimensional Mixing Machine Pharmaceutical Food Chemical Fertilizer Granule Mixer Blender


    EYH Series 2-dimensional Mixing Machine


    Application


    The mixers are widely used in pharmaceutical, chemical, food industries and especially suitable for mixing various solid materials with large volume.


    Advantages


    1. Cycloid pin gear reducer or worm gear reducer is adopted for the second rotation. Compared with the traditional mixer, it has no material accumulation at the bottom, no pollution, convenient flushing, and truly meets the GMP requirements.

    2. When working, under the dual action of the rotating mechanism and the swinging mechanism, the charging barrel rotates and swings at the same time, so that the materials in the barrel can be fully mixed.

    3. The equipment can be equipped with automatic vacuum feeder and interface to facilitate feeding and shorten operation time. High efficiency and low cost.

    4. Two dimensional motion mixer: simple structure, low failure rate, stable operation, safe operation, no noise, easy to clean, in line with GMP requirements.

    5. The volume is much smaller than the normal standard, the floor area is small, and the function is powerful.

    Widely used for mixing powder and granular materials. It has the characteristics of rapid mixing, large mixing quantity and convenient discharging.


    Working Principle


    The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel centre-line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.


    Main technical specification



    ModelBarrel volume (L)loading capacity(L)loading weight(kg)swing&rotation (rpm)total power(kw)Overall size(mm)Total weight(kg)Barrel weight(kg)
    EYH-60603020500.4700×730×99011515
    EYH-1501507550371.15890×1070×131519050
    EYH-300300150100301.151010×1355×157034060
    EYH-60060030020023.631280×1790×20601150140
    EYH-1000100050035019.831560×2280×22701700240
    EYH-20002000100065016.27.41800×2640×27302600430
    EYH-300030001500100013.8112000×3100×31503500620
    EYH-400040002000120012.8132100×3310×33804100700
    EYH-500050002500150011.9152260×3590×36804800780
    EYH-600060003000180011.218.22400×3790×387061001100
    EYH-800080004000240010.4222600×4080×415075001400
    EYH-1000010000500030009.4302900×4460×437095001650


    Company Brief


    Sincerity Wins Honor


    Package



    Whole machine and every parts wrapped by plastic film for dusting-proof.

    Packed in export standard wooden case with pallet, conducive to forklift handling.


    Shipping



    Shipping method: by sea, by air, by international express company.

    Delivery time: 30-45 days after order confirm.

    Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.


    FAQ


    Q: Are you a factory or a trading company?
    A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: How can I know your machine works well?
    A: Before delivery, we shall test the machine working condition for you.
    Q: How can I know your machine is designed for my product?
    A: You can send us samples of your product and we test it on machine.
    Q: Do you have a CE certificate?
    A: For every model of machine, it has a CE certificate.
