    Double Color Automatic Tablet Press Machine side engraved

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : ZPW23
    Certification : CE GMP ISO
    Price : Negotiation
    Supply Ability : 50 Set /Sets Per Year
    Delivery Time : About 30-45 working days after payment
    • Product Details
    • Company Profile

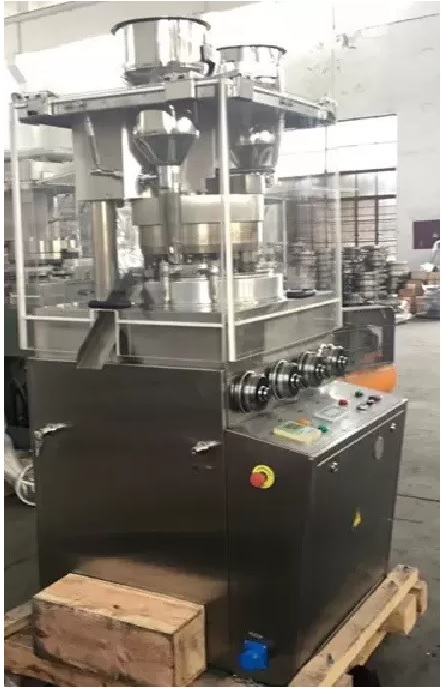

    Double Color Automatic Tablet Press Machine side engraved

    Multi-functional Double-color Rotary Tablet Press Irregular Tablet Double side Engraved Tablet Manufacturing Machine




    Product Quick Details:


    -It is a multi-functional rotary tablet press,conforms to GMP standard.

    -The most outstanding advantage of being able to produce irregular tablets,ring tablets,double layer tablets,double color tablets and double side engraved tablets.


    Features:

    • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    • Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
    • ZPW23 Rotary Tablet Press is equipped with continuous and centralized lubrication system for the driving system, tracks and main frictional parts to be adequately lubricated, to reduce the noise and wearing for maintenance cost to be greatly reduced.
    • The electric control part adopts the PLC(Programmable Logic Control), with the functions of setting up of the main compression and main compression override stop. This machine is provided with the function of auto diagnosis of defectives. Through the display, the defective position can be traced and located rapidly, to increase the efficiency of maintenance.
    • The machine can stop automatically in case of overpressure.
    • Speed adjustable, operation simple and reliable.

    Main technical specifications:


    Stations (unit)23Thickness of the die (mm)28
    Maximum compression (Kn)80The diameter of the circle of the central pitch of upper &lower punches on the turret (mm)320
    Max. Diameter of tablet to be produced (mm)20Rotary speed of the turret (rpm)10-40
    Max. Filling depth (mm)22

    Capacity of the tablets

    (pcs/hour)

    55000
    Max. Thickness of tablet (mm)11Area to occupy (mm2)930*950
    Diameter of the upper/lower shank (mm)32Height of the machine (mm)1850
    Length of the upper shank (mm)175motor power (kw)4
    Length of the lower shank (mm)183Net weight of the machine (kg)1500
    Diameter of the die (mm)36


    Company Information:

    Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.is the innovative leading manufacture and professional total-solution supplier for pharmaceutical processing machines,packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

    We are a high-technology enterpries ,all tasks from casting to metal machining and general assembly are accomplished by ourselves.We are dedicating ourselves to reinforce quality control and satisfactory service.We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

    Through continuous development, we have successively established good trade relations with about 2,000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

    Our mission is to provide our customer the most suitable qualified-product with best price and excellent service.

    We are looking forward to building a long-term and cooperative relationship with you.Please trust us as your most trustworthy friends!


    Model:


    Sincerity wins honor:

    FAQ:

    Q: Are you a factory or a trading company?
    A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: How can I know your machine works well?
    A: Before delivery, we shall test the machine working condition for you.
    Q: How can I know your machine is designed for my product?
    A: You can send us samples of your product and we test it on machine.
    Q: Do you have a CE certificate?
    A: For every model of machine, it has a CE certificate.
    Your Satisfaction is Our Honor!
