    Economic 25mm Irregular Single Outlet Rotary Camphor Pressing Machine

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : ZP1100
    Certification : CE GMP ISO
    Price : Negotiation
    Supply Ability : 50 Set /Sets Per Year
    Delivery Time : About 30-45 working days after payment
    • Product Details
    • Company Profile

    Economic 25mm Irregular Single Outlet Rotary Camphor Pressing Machine

    Automatic economic single outlet rotary tablet press 11-25mm round Irregular tablet filling Machine for mass Production


    Product Quick Details:

    -It is single side tablet compression machine, conforms to GMP standard.

    -It is economical type tablet press, suitable for mass production.

    -Adopt PLC and touch screen control, simple operation,easy and quick cleaning.

    -Support model customization,can press various shapes of tablets.


    Application:

    Model ZP1100 Series Rotary Tablet Press Machine is a new generation product. There is altogether four types. It is an economical high-speed tablet press machine and it is suitable for producing a great quantity tablets. It can be produced all types of round tablets, irregular tablets and tablets of engraved on double sides.


    Characteristics:

    • It meets GMP requirement.
    • The design of ZP1100 series is reasonable. It is easy for operation, cleaning and changing products.
    • The production capacity is large and the quality of production is better. It has pre-pressure device so that the time of pressure can be delayed.
    • The speed of turret is high. The linear velocity is up to requirement of High Speed Tablet Press Machine.
    • The controller is PLC. The showing screen can be shown and set up each of technology, controlling parameter, each of breakdown and fixing way. It can be shown average working pressure of tablets through the showing screen so that the operator can judge the quality of tablets and can adjust the weight of tablets in time. At the same time, it can be set up the Max working pressure too. When the actual pressure exceeds the setting up numeral value, the machine can be automatic stopped urgently.
    • The series machines have protective device for upper punches broken. When the upper punches are broken, the machine can be stopped urgently by automatic electric control.

    Main technical specifications:

    ModelZP1124ZP1129ZP1134ZP1136ZP1139
    Number of Stations2429343639
    Tooling StandardDBZPBBBBS
    Max Main Pressure (KN)80
    Max Pre-pressure (KN)20
    round tablet2518131311
    Max Tablet Diameter (mm)irregular tablet2519161613
    Max Filling Depth (mm)18
    Max Tablet Thickness (mm)7
    Max Turret Speed (r/min)65
    Max Production Capacity (pcs/h)93600113100132600140400152100
    Motor Power (kw)4
    Overall Size (mm)960×910×1750
    Machine Weight (kg)1650

    Tablet Samples:

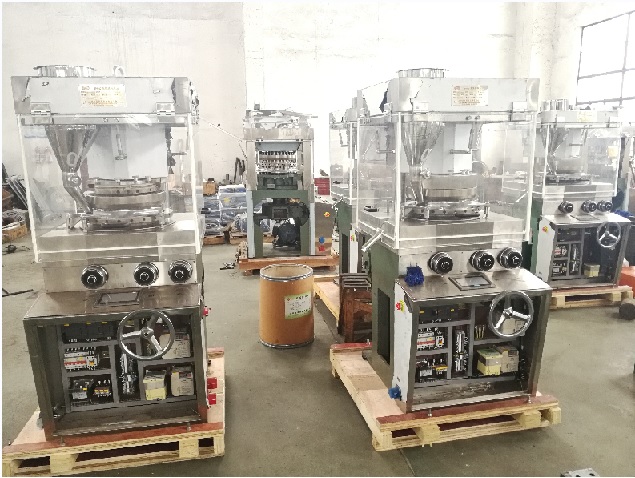

    Product real shoot:



    Our company:


    Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.is the innovative leading manufacture and professional total-solution supplier for pharmaceutical processing machines,packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

    We are a high-technology enterpries ,all tasks from casting to metal machining and general assembly are accomplished by ourselves.We are dedicating ourselves to reinforce quality control and satisfactory service.We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.


    Through continuous development, we have successively established good trade relations with about 2,000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

    Our mission is to provide our customer the most suitable qualified-product with best price and excellent service.

    We are looking forward to building a long-term and cooperative relationship with you.Please trust us as your most trustworthy friends!



    Sincerity wins honor:

    FAQ:

    Q: Are you a factory or a trading company?
    A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: How can I know your machine works well?
    A: Before delivery, we shall test the machine working condition for you.
    Q: How can I know your machine is designed for my product?
    A: You can send us samples of your product and we test it on machine.
    Q: Do you have a CE certificate?
    A: For every model of machine, it has a CE certificate.
    Your Satisfaction is Our Honor!
