    Small Type Laboratories Effervescent Salt Tablet Compression Machine

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : ZP265
    Certification : CE GMP ISO
    Price : Negotiation
    Supply Ability : 50 Set /Sets Per Year
    Delivery Time : About 30-45 working days after payment
    • Product Details
    • Company Profile

    Small Type Laboratories Effervescent Salt Tablet Compression Machine

    Small-type Intelligent R&D laboratories Tablet Press Effervescent Tablet Salt Tablet Compression Machine Small scale Production


    sample 1:


    Product Quick Details:

    -It is fully enclosed in compliance with GMP requirement.

    -It is PLC and touch screen control, friendly and easy to operate.

    -Speed adjustable by frequency inverter.

    -With main pressure and pre-pressure.

    -Suitable for use in R&D laboratoriesand university and small-scale production.


    Application:

    • A small-sized automatic continuous rotary type tablet press, this machine is mainly used in the tablet production in pharmaceutical factories, laboratories in colleges and universities, medicine research institutes, hospitals, pharmacies, etc. The machine is also applicable to foodstuff, electric cell, chemical and ceramic industries to press the granular material into tablets.
    • The machine is suitable to the granular materials that contain less 10% of powder (over 100 mesh). It is not applicable for semi-solid, damp, moisture-absorptive and non-granular materials with low melting point.
    • The machine is applicable for pressing of 4 – 22 mm round, letter-engraved or shaped tablets.

    Features:

    • The machine is a single-press type. The outside part of the machine is fully enclosed. It meets the GMP requirement.
    • Install pre-pressure and main pressure.
    • Main shaft drives and the speed is adjusted by Frequency Conversion.
    • Advanced turbine retard.
    • There are thrust shaft and lubricate shaft on turret.
    • Numerical show
      • Show present main pressure (Max. pressure 80 KN)
      • Show present tablet thickness
      • Show present filling depth
      • Show present pre-pressure roller position
      • Show present speed of turret
    • Touch Screen Operation
    • Protecting and reporting function
      • Protecting and reporting for motor breakdown
      • Protecting and reporting for over pressure
      • Protecting and reporting for loading and unloading lower punches
      • Emergency stopping function

    Main Specifications:

    ModelZP25ZP18ZP23ZP27ZP30
    Number of stations2518232730
    Punches&Dies StandardZPDBBBBBS
    Production capacity (tablets/h)22500-6750012900-3880016500-4960024300-7890027000-81000
    Max. main pressing force (kN)80
    Max. pre-pressing force (kN)10
    Max. diameter of tablet (mm)1325181211
    Max. thickness of tablet (mm)8
    Max. filling depth (mm)1618
    Rotating speed of rotary table (rpm)15 ~ 4512 ~ 3615 ~ 45
    Diameter of die (mm)2638.130.162422
    Height of die (mm)2223.822.22
    Diameter of punch (mm)2225.3519
    Length of punch (mm)115133.35/133.6
    Upper punch feed depth (mm)4
    Power of main motor (kW)380V, 50/60Hz, 3Ph
    Overall dimensions (L x W x H)700*750*1500
    Weight (Kg)650

    sample 2:

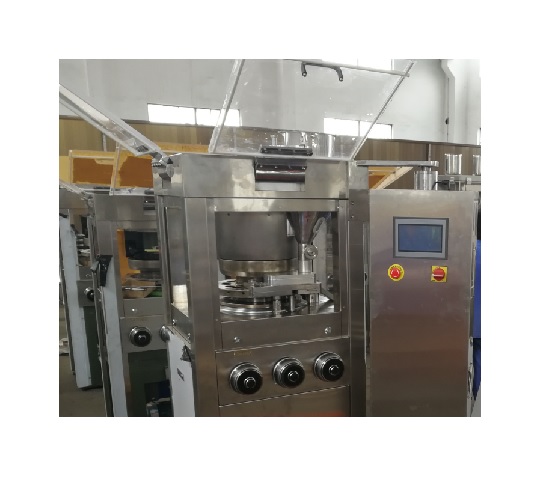

    product real shoot:




    company profile:


    Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.is the innovative leading manufacture and professional total-solution supplier for pharmaceutical processing machines,packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

    We are a high-technology enterpries ,all tasks from casting to metal machining and general assembly are accomplished by ourselves.We are dedicating ourselves to reinforce quality control and satisfactory service.We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

    Through continuous development, we have successively established good trade relations with about 2,000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

    Our mission is to provide our customer the most suitable qualified-product with best price and excellent service.

    We are looking forward to building a long-term and cooperative relationship with you.Please trust us as your most trustworthy friends!

    sincerity wins honor:


    FAQ:

    Q: Are you a factory or a trading company?
    A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: How can I know your machine works well?
    A: Before delivery, we shall test the machine working condition for you.
    Q: How can I know your machine is designed for my product?
    A: You can send us samples of your product and we test it on machine.
    Q: Do you have a CE certificate?
    A: For every model of machine, it has a CE certificate.
