    19 Punching Die Small Scale Automatic Tablet Press Machineine 20mm Diameter

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : ZP17E/ZP19E
    Certification : CE GMP ISO
    Price : Negotiation
    Supply Ability : 50 Set /Sets Per Year
    Delivery Time : About 30-45 working days after payment
    • Product Details
    • Company Profile

    19 Punching Die Small Scale Automatic Tablet Press Machineine 20mm Diameter

    AProfessional small-scale Batch Production Tablet Press Machine 17/19 punching Die Tablet Manufacturing Machine


    Product Quick Details:

    1. This machine is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet, specially for small-scale batch production.
    2. During operation, the speed of turret rotation, the depth of filling material and the thickness of the tablets can be adjusted. The pre-pressure unit and overload protection unit is included in the system.
    3. The mechanical buffer unit will prevent punches and apparatus from overload damage.

    Features:

    • Made of stainless steel,the housing is fully closed. The surface of the rotary turretis covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    • Adopt transparent windows,tableting state can be observed clearly. The windowscan be opened,clearing and maintenance is easy.
    • All the drive devices are located inside the machine so keep the machine cleaning.
    • The machine can stop automatically in case of overpressure.
    • With pre-pressure roller,extending the pressing time and making good quality tablets.
    • Force feeder is optional.

    Main technical specifications:

    ModelZP17EZP19E
    Number of Stations1719
    Max Main Pressure (KN)5050
    Max Pre-pressure (KN)1010
    Max Tablet Diameter (mm)round tablet2013
    irregular tablet2216
    Max Filling Depth (mm)1515
    Max Tablet Thickness (mm)66
    Max Turret Speed (r/min)4040
    Max Production Capacity (pcs/h)4080045600
    Motor Power (kw)2.22.2
    Overall Size (mm)950×770×1740950×770×1740
    Machine Weight (kg)900900

    sample:

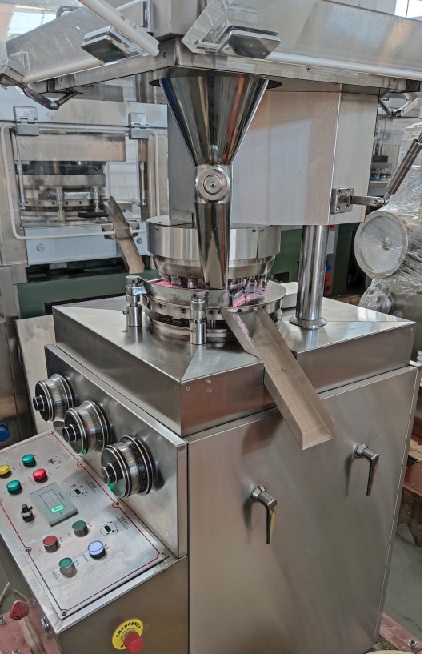

    Product real shoots:





    Company Information:


    Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.is the innovative leading manufacture and professional total-solution supplier for pharmaceutical processing machines,packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

    We are a high-technology enterpries ,all tasks from casting to metal machining and general assembly are accomplished by ourselves.We are dedicating ourselves to reinforce quality control and satisfactory service.We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

    Through continuous development, we have successively established good trade relations with about 2,000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

    Our mission is to provide our customer the most suitable qualified-product with best price and excellent service.

    We are looking forward to building a long-term and cooperative relationship with you.Please trust us as your most trustworthy friends!


    Sincerity wins honor:



    FAQ:

    Q: Are you a factory or a trading company?
    A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: How can I know your machine works well?
    A: Before delivery, we shall test the machine working condition for you.
    Q: How can I know your machine is designed for my product?
    A: You can send us samples of your product and we test it on machine.
    Q: Do you have a CE certificate?
    A: For every model of machine, it has a CE certificate.
