High Pressure Automatic Rotary Tablet Press Machine For Pharmaceutical Foods Industry

Quick Details

- This machine is one kind of single side output

- Max Main Pressure: 80KN

- Tooling Standard: D/B/BB/BBS

- Max production: 291000 pcs/hour

Application:

This machine is one kind of single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Technical Feature

1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

2. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.

3. Speed adjustable by frequency inverter, the motor is fixed on the based plate, prevent the motor vibrating during working.

4. The upper and lower guide rails and punches are lubricated with an intermittent fixed low flow rate automatic lubricating system so as to reduce the wear of guide rails.

5. Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged.

6. A high precision pressure sensor is equipped with an amplifier provided with gaining and self-checking functions so as to implement self-checking of tablet compression pressure reliably. The tablet weight control system is easy to operate and provided the function of rejecting degraded tablets in batches or individually.

7.Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.

Main Technical Specifications

About us

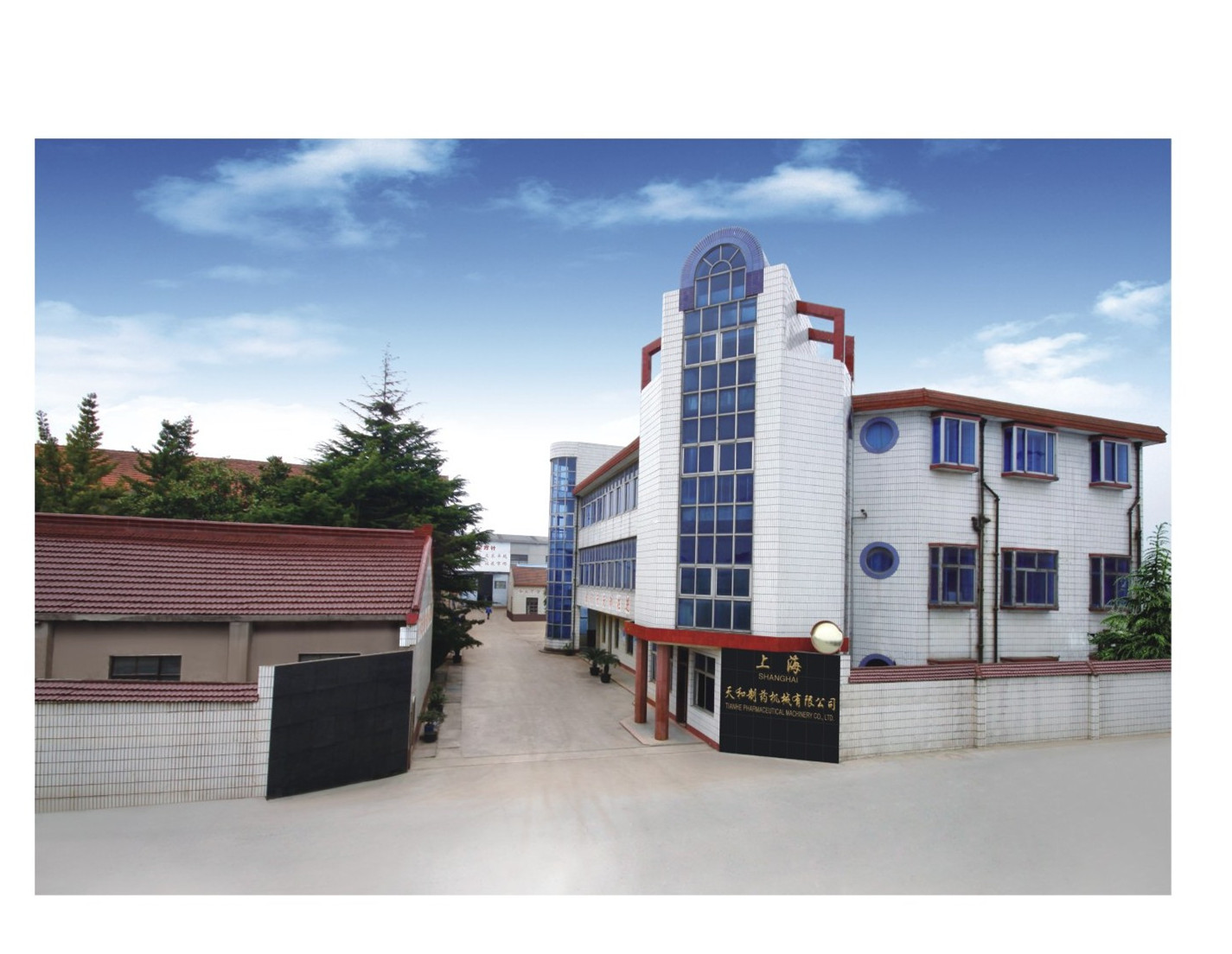

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd is registed in Chongming island Shanghai for over 30 years. We are specilized in rotary tablet press machine, packing machine in Pharmaceutical & Food industry.

We are high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

We are looking forward to building a long-term and cooperative relationship with you. Plese trust us as your most trustworthy firends!

Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand  STH) is formed by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The registered fund is RMB 5,000,000 and the floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".

STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.

STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by itself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.

We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.

STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. To meet the increasing needs of domestic and foreign market, we successively research and develop the following products in compliance with the GMP standard:ZP37 Touch-type Rotary Tablet Press, ZPY100 series Rotary Tablet Press, ZP 35A /B/D rotary Tablet Press, ZPW23 Double-Layers Rotary Tablet Press, ZP11 00 series Economical High-speed Rotary Tablet Press, ZPW25 Triple-layers and Multi-function Rotary Tablet Press, ZPW20 Rotary Core Coated Tablet Press, ZP198 series Rotary Tablet Press, RGY12*25S Soft Gelatin Encapsulation Machine(water cooling type)and ZH90/100 Automatic Cartoning Machine ect.

The above machines have successfully entered domestic and foreign market and obtained the customers approval, ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' ect.

We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing ect. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry. In fact, we have produced the following machines specially for these above industries: YH20 Powder Forming Machine, RP200-1P/RP-300-1P Rotary Shaping Machine and ZP11 Rotary Tablet Press.
