Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN

    Buy cheap Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN from wholesalers

    Buy cheap Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN from wholesalers
    • Buy cheap Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN from wholesalers
    • Buy cheap Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN from wholesalers
    • Buy cheap Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN from wholesalers

    Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN

    Ask Lasest Price
    Brand Name : STH,CHINA
    Model Number : GZP570
    Certification : ISO,GMP,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 units per year
    Delivery Time : 45-60 working days
    • Product Details
    • Company Profile

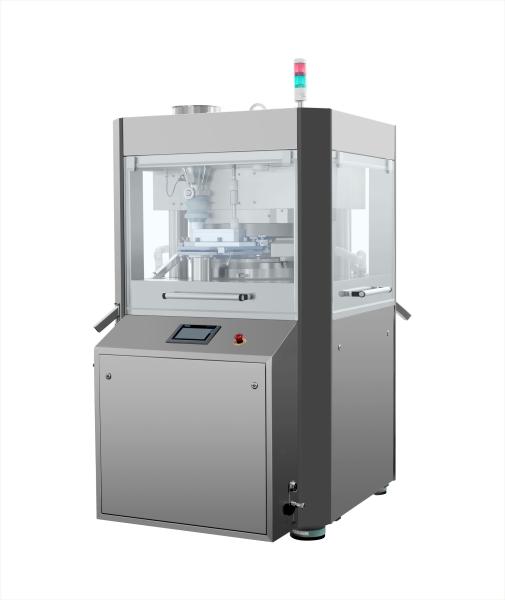

    Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN

    Auto Weight Control High Speed Powder Press Machine Full Closed Pressure 100KN

    Application:

    This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in Pharmaceutical, chemistry, foodstuff, electronic industries.


    Main technical specifications:
    ModelGZP-41GZP-51GZP-61GZP-65
    Number of Station41516165
    Tooling StandardDBBBBBS
    Max Main Pressure (KN)100
    Max Pre-pressure (KN)40
    Max Tablet Diameter (mm)Round Tablet25181311
    Irregular Tablet25191613
    Max Filling Depth(mm)21181818
    Max Tablet Thickness (mm)8666
    Max Turret Speed (r/min)58
    Max Production Capacity(pcs/h)285360354960424560452400
    Motor Power (KW)11
    Overall size (mm)1425*1150*2245
    Machine Weight (kg)3800

    Features:


    1: High speed with large quantity punches,double press rollers, suitable for mass production.


    2:Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.


    3:Perfect tableting system, twice compression forming reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.


    4:Compression compartment is entirely enclosed with transparent glass to prevent contamination.


    5:Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.


    6:Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.


    7:High performance electrical control system, ensure each program processing precisely.


    8:Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers,tooling and tracks,extending the working life of the machine.


    9:Special oil proof, dust proof and noise proof design.


    electrical.pngH64dedb6186214f719c49317322997ea3c.pngSpecial product outlet_wps.jpg
    ABB Motor.pngSiemens PLC&touch screen.png

    Punch and die

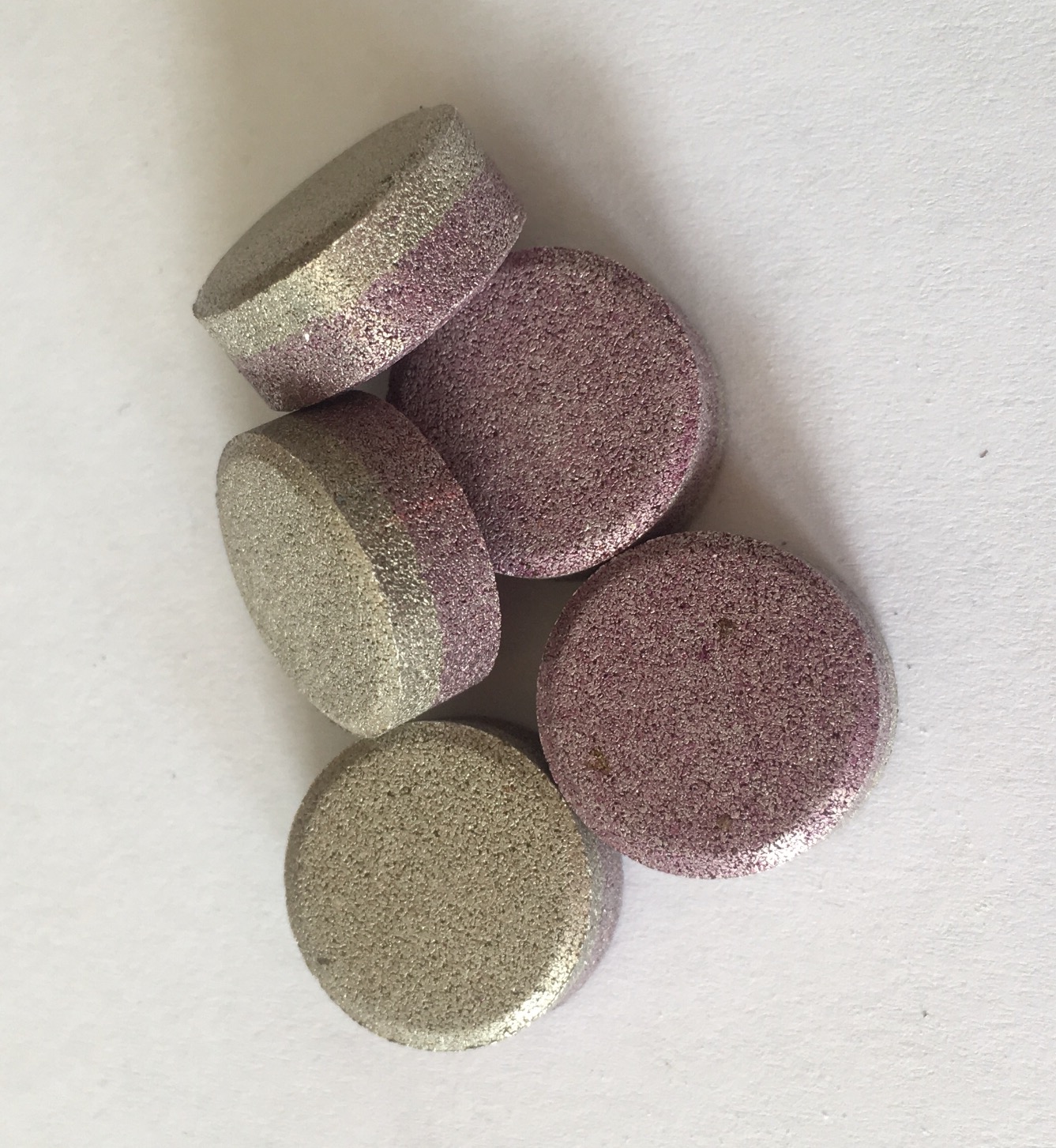

    Samples

    round &irregular shape.JPG Special powder.JPG Traditional Chinese .JPG Mike tablets
    Round&irregular shape Special powder Chinese medicine Mike tablets
    Our Services

    1. One year guarantee for whole machine
    2. 24 hours technical support by e-mail
    3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account
    FAQ

    Q. Where is your factory How can I visit your factory?

    A: Our factory is located in Chenjia Town,Chongming County,Shanghai,China.We warmly welcome you to visit our factory.


    Q. How can I know your machine is designed for my product?

    A. If you don't mind,you can send us samples and we will test on our machines.We will take videos and photos for you.We

    can also show you video on-line.


    Q.How to contact you?

    A. Please leave messages by email or send us WhatsApp, Wechat and QQ etc.
