    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design

    Ask Lasest Price
    Brand Name : STH
    Model Number : YH20
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 units per year
    Delivery Time : 45-60working days
    • Product Details
    • Company Profile

    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design

    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design

    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design Application:

    The machine is not only mainly used in pharmaceutical industry, but also the chemical, food, electronic, chemical fertilizer and ceramic industries. This machine can press the various kinds of granular materials or powder materials into tablets, such as round shape tablets, irregular shape tablets, double side engraved tablets and ring type tablets. This machine also can press single layer tablets, double layers tablets or triple layer tablets to meet the requirement of different customers. The machine meets GMP requirements.

    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design Features:

    1. The strength of the machine is strong. The machine is suitable for large pieces and the materials which is difficult to form the tablets.
    2. The workshop is completely isolated from transmission components so that prevent cross- contamination of materials. The parts that contact materials are made of stainless steel or covered with non-toxic surface. It could the working life of the machine.
    3. The structure of the machine is compact the machine has reliable performance. It is easy to operate and clean.
    4. The machine is equipped with protection cover. By the cover man can observe how the machine works.
    5. The speed is controlled by frequency inverter. The operation is simple and it works steady.
    6. All the drive devices are located inside the machine so it can keep the machine clean.

    Salt , Catalyst , Electronic Component Tablet Forming Machine New Design Main technical specifications:


    ModelYH20
    Number of stations20
    Max Main Pressure (KN)250
    Max Tablet Diameter (mm)40
    Max Filling Depth(mm)57
    Max Tablet Thickness (mm)25
    Max turret speed (r/min)12
    Max Production Capacity(pcs/h)14400
    Motor Power (KW)7.5
    Overall size (mm)1660*1220*1870
    Machine Weight (kg)3800

    Packaging & Shipping

    Packaging detail: Normal export wooden case..

    Delivery detail: about 60 working days after payment

    PACKIN BOX.JPGshipping

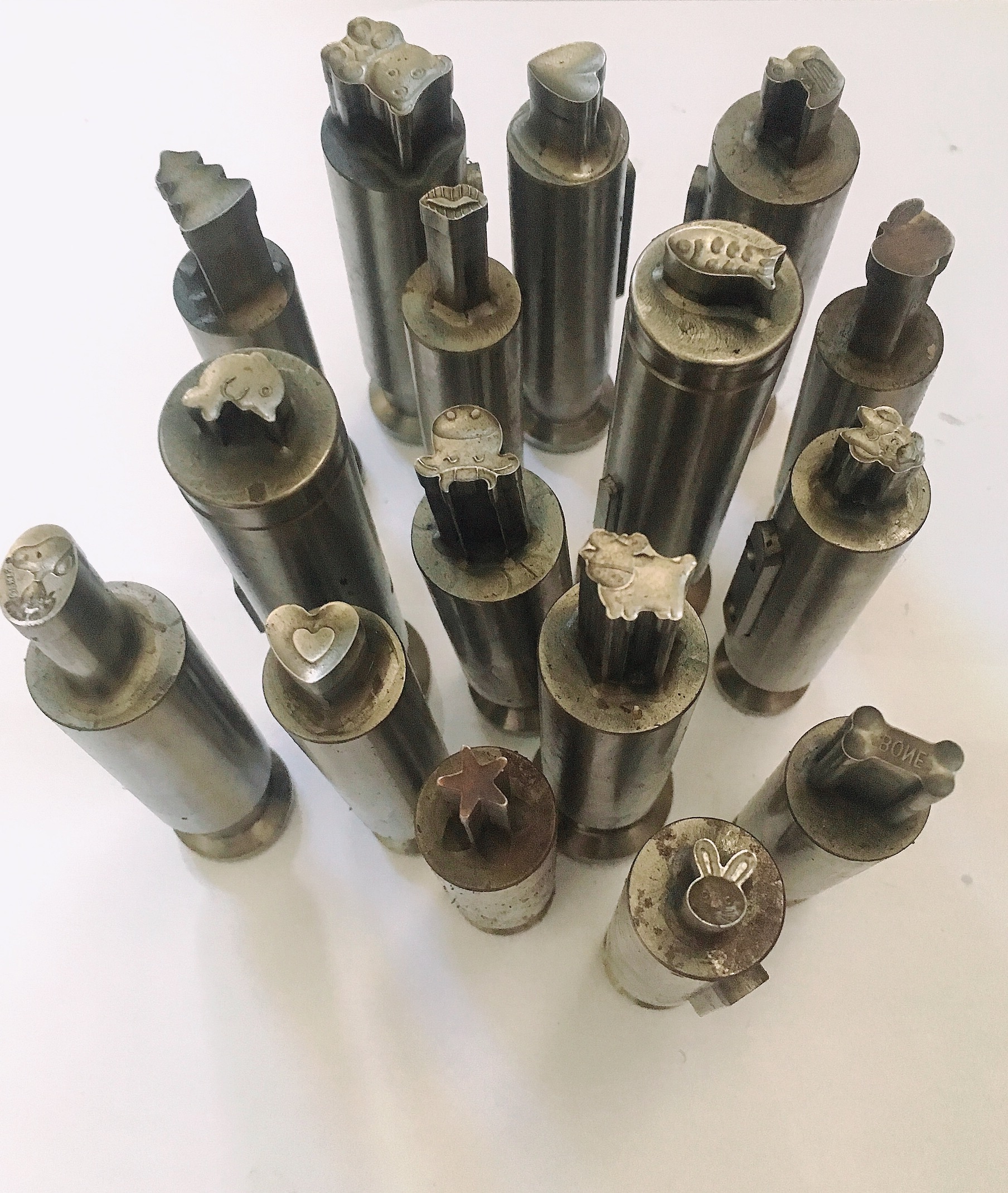

    Punch and die

    PD1.JPGPunch and die.JPGVarious types of PD.JPG
    Samples

    round &irregular shape.JPGSpecial powder.JPGTraditional Chinese .JPG
    Round&irregular shape Special powder Traditional chinese medicine

    Camphor ball Catalyst tablets Watercoler block L Big Camphor ball

    Our Services

    1. One year guarantee for whole machine
    2. 24 hours technical support by e-mail
    3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account
