    Mini Series Blister Packing Machine For Foodstuff , Medicine , Electronics

    Ask Lasest Price
    Brand Name : STH
    Model Number : DPP-80
    Certification : ISO,CE,GMP
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000units per year
    Delivery Time : 20-45days
    • Product Details
    • Company Profile

    Mini Series Blister Packing Machine For Foodstuff , Medicine , Electronics

    DPP-80 Blister Packaging machine


    Features:


    1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

    2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

    3,It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

    4,It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

    5,The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.


    Technical Specification

    Max. Forming area & Depth

    105x70(standard depth ≦15mm), Max. Depth 25mm( As adjusted

    Standard Stroke range

    30-80mm(can be designed as per user’s required)

    Standard plate size

    80x57mm (can be designed as per user’s required)

    Air pressure

    0.4-0.6Mpa

    compressed air required

    Air compressor≥0.3m3/min

    Total power supply

    220V 50Hz 2.4Kw

    Main motor

    0.75Kw

    PVC hard Film

    0.15-0.5*110 (mm)

    PTP Aluminum film

    0.02-0.035*110 (mm)

    冷冲铝0.14-0.16 110(mm)

    Dialysis Paper

    50-100g*110(mm)

    Mould cooling

    Tap water or Recycling water

    Overall Dimension

    1840x590x1100 (mm)(LxWxH)

    Weight

    Net 425kg Gross weight: 475kg

    Noise index

    <75dBA

    Work process

    Forming ( up and down heating)

    Heating Sealing ( up heating)


    Embossing

    Impression

    Cutter

    Finished product output

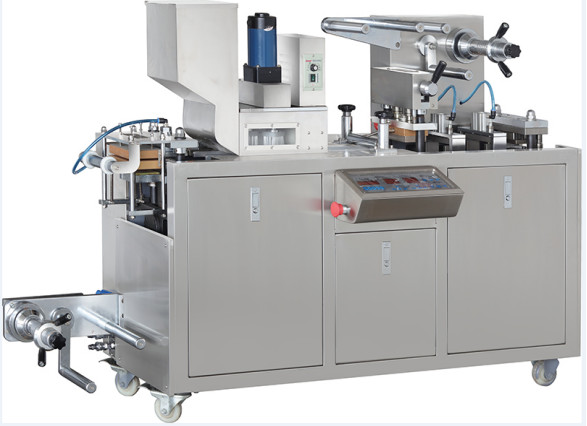

    Product picture


    Mini Series Blister Packing Machine For Foodstuff , Medicine , Electronics

    Packaging & Shipping

    1. Packaging detail: Normal export wooden case..

    2. Delivery detail: about 20 working days after payment


    Our Services
    1. One year guarantee for whole machine
    2. 24 hours technical support by e-mail

    Company Information

    Brief introduction of the company

    Company:Shanghai Tianhe Pharmaceutical Machinery Co.,Ltd.

    Shanghai Tianhe Pharmaceutical Machinery Co.,Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years.
    We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory clients based on detailed URS analysis and mutual communication.
    Through continuous development, we have successively established good trade relations with about 2000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.
    Our mission is to provide our customer the most suitable qualified- product with best price and excellent service.
    We are looking forward to building a long term and cooperative relationship with you. Please trust us as your most trustworthy friends!

    Address:Chenjia town, Chongming County, Shanghai, China
