    Automatic Plastic Bottle Feeder Unscramble Machine For Bottle Filling Line

    Ask Lasest Price
    Brand Name : STH
    Model Number : CS-2
    Certification : ISO.CE,GMP
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000units per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Automatic Plastic Bottle Feeder Unscramble Machine For Bottle Filling Line

    Automatic Plastic Bottle Feeder Unscramble Machine For Bottle Filling Line Quick Details

    - Application: Beverage, Chemical, Food, Medical

    - Type: Other, Bottle unscrambler

    - Packaging Type: Bottles

    - Production capacity: 60~120 bottles/min

    - Suitable bottle: Plastic (round, shaped, square) bottles

    - Driven Type: Electric


    Application

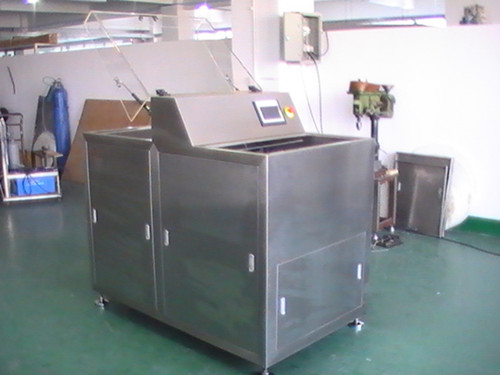

    Automatic Bottle Unscrambler, which using electromechanical integration technology, is easy to be operated and maintained, and has reliable operation and wide applicability. It is equipped with bottle of quantitative control device and overload protector. Its body and bucket are both made of high quality stainless steel, which also makes it conform to GMP standards.

    This machine is comprehensively used in pharmaceutical companies, with the function of automatically sorting and directional output for different shapes and specifications plastic bottle. It is the ideal equipment of various plant of plastic bottle. In addition, it also can be applied to the plastic bottle plant of chemical industry, light industry, and food and beverage industry.

    Main Features

    With simple and practical structure, and reliable motion.

    Using infrared photoelectric detection with high degree of automation.

    Reliable and stable operation, low noise.

    With large bottle-storage capacity and high efficient production.

    The machine is stepless speed regulation, can adapt to a variety of production line.

    Sealing with full-closing design.

    Simple operation, wide applicability and easy adjustment.


    Main Technical Specifications

    Max. Capacity60-120 bottles/min.
    Diameter of Turn table700-800mm
    Speed of Turn table2-7 r.p./min.
    Size of bottle15-200ml
    Bottle diameter20-70mm
    Bottle hight30-120mm
    Compressed Air0.3-0.6MPa
    Power0.45KW
    Overall Size900*900*1200mm
    Net Weight280kg
