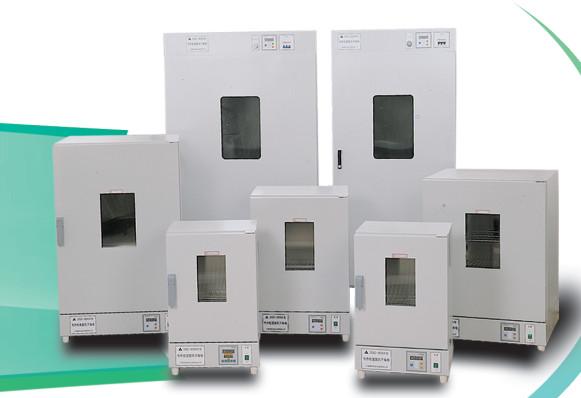

    Laboratory Stand-Drying and Air Circulation Oven For Medicine, Chemical Industry

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : 9030 (A、AD)
    Certification : CE, ISO, GMP
    Price : Negotiation
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    Laboratory Stand-Drying and Air Circulation Oven For Medicine, Chemical Industry

    Laboratory Stand-Drying and Air Circulation Oven For Medicine, Chemical Industry Quick Details


    - Type:Drying Oven

    - Place of Origin:Shanghai, China

    - Warranty:1 Year

    - After-sales Service Provided: Engineers available to service machinery overseas

    - Voltage: 220V


    Purpose


    Provided to industrial and mining enterprises, laboratories and scientific research institutes for desiccation,
    torrefaction,wax-melting and sterilization. Detailed purpose: glassware desiccation, laboratorial sample, food, chemical material’s
    heat denaturalization, heat induration, heat inteneration, moisture eliminated; biomedical engineering ‘s instruments’ sterilization;
    electronic component’s torrefaction and aging.
    Feature
    ◆ Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan, input and output volume can be adjustable, assure the
    temperature within the working chamber even.
    ◆ The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of
    stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance. A,AD model’s working chamber is made of high
    quality corrosion-resistant stainless steel.
    ◆ Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed
    programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
    ◆ Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory.
    Temperature display emendation. Self-diagnosing dynamic control technology.
    ◆ AD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.
    ◆ Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
    ◆ Equipped with the interface of inert gas and flow meter of inert gas. (Option)


    Specification


    Model

    9030

    (A,AD)

    9070

    (A,AD)

    9140

    (A,AD)

    9240

    (A, AD)

    9420A

    (AD)

    9620A(AD)
    Chamber volume30L70L140L230L430L620L
    Environmental conditionTemperature 5~30℃
    Maximum relative humidity 80%
    Altitude up to 2000m
    MethodVertical forced convection
    PowerAC220V,50HzAC380V,50Hz
    RangeAmbient temperature+10℃~200℃
    TemperatureAccuracy±1℃ at 100℃
    Pulse degree±1℃
    Uniformity±1℃ at 100℃±2℃ at 100℃±2.5℃ at 100℃
    ControllerThe PID microprocessor controls, touch type, numeral manifestation
    SensorPlatinum gold resistor PT100
    TimerWait on time,wait off time(Max.99hr,Min.1min)
    MaterialInternal9030, 9070, 9140, 9240(Iron 08F),A, AD(304 stainless steels)
    ExternalIron 08F
    Dimension
    (mm)
    Internal300×300×350400×400×450450×550×550500×600×750600×550×1300800×600×1300
    External445×450×710550×550×800640×700×900690×730×1100770×710×1750970×760×1750
    Net weight36KG50KG71.5KG90KG183KG250KG
    Consumption power650W940W1390W1890W3370W3970W
    Shelf dimension (mm)293×275393×375443×530493×580590×514790×564
    Shelve(supply/most)2/42/42/42/53/63/6
