    Mixer Granulator Multi-functional Pharmaceutical Processing Machine

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : SD-II
    Certification : CE, ISO, GMP
    Price : Negotiation
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    Mixer Granulator Multi-functional Pharmaceutical Processing Machine

    Mixer Granulator Multi-functional Pharmaceutical Processing Machine


    Mixer Granulator Multi-functional Pharmaceutical Processing Machine Quick Details


    - Multi-functional type R&D equipment

    - Application: Medicine Processing, Chemicals Processing, Plastics Proce

    - Material: Stainless steel

    - Applicable Industries: Food & Beverage Factory, Food Shop

    - Origin: china

    - Motor: 0.735KW


    Mixer Granulator Multi-functional Pharmaceutical Processing Machine Application:

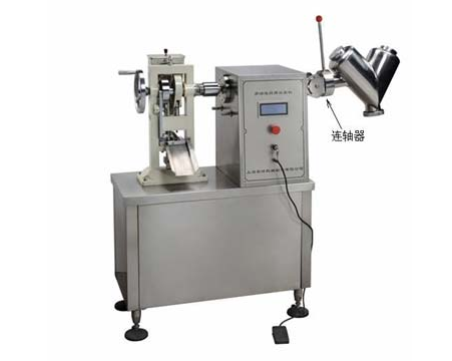

    SD-II Multi-functional pharmaceutical Experimental Equipment is a package of small
    size equipment dedicated to the pharmaceutical laboratories.
    It has a wide application in the research, test and pilot production in industries such
    as pharmaceutical, foodstuff, chemicals and cosmetics.
    Through a universal driving mechanism, different kinds of auxiliary machine can be
    attached to the main machine, realizing the functions of stirring, mixing, vibrating
    granulation, wet granulation, and mixing, sugar coating and screening.
    The entire machine providing the driving mechanism is coated with stainless steel in
    a clear and simple appearance without dead corner. It is convenient for cleaning and in
    compliance with GMP requirements.

    The surface of the stainless steel is treated in many ways such as mirror polishing,
    legging and fascination to be selected by the customers for satisfying the particular needs.
    The machine is adopt human machine interface control system,it can quickly connect
    all kinds of another machines, all of the set can adjust, and the screen can display very
    accurate.
    This machine have foot control switch, in the process of examination it can make all
    same examination criterion very easily.
    The machine adopt international Italy frequency adjust speed motor, voltage is 0-80
    rotate/min.
    The machine can through human machine interface control system, it can counting
    times and timing, avoid the examination time date not accurate, influence batch
    production time error.


    Technical Parameters


    ModelNameVolume
    (L)
    Productioncapacity Size
    (L × W × H) mm
    Weight
    (kg)
    SD-IIMain Drive Unit500×450×1500100
    SD-II-1Double cone Mixer550%550×300×3506
    SD-II-2Cubic Mixer3.540%580×350×3006
    SD-II-3Multi-Directional Mixer540%550×350×45012
    SD-II-4Trough Mixer560%450×250×30020
    SD-II-5V-Mixer850%500×150×4006
    SD-II-6Coating Pan830%300×3006
    SD-II-7Oscillating Granulator30kg/h500×300×28020
    SD-II-8Agitator560%5
    SD-II-9Pelletizing machine500×400×4008
    SD-II-10Tablet machine6000 片/h500×300×70050
