    370 Series Rotary Tablet Press Machine Automatic Weighing Motor 11KW

    Ask Lasest Price
    Brand Name : STH, TIANHE
    Model Number : GZPK370
    Certification : GMP, CE , ISO
    • Product Details
    • Company Profile

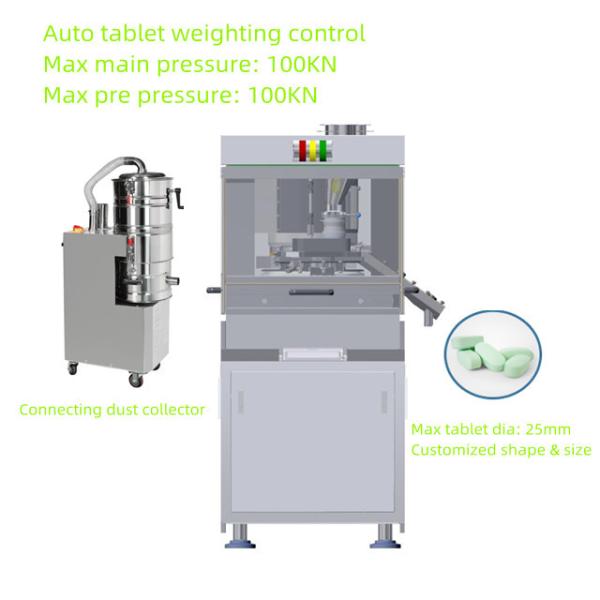

    370 Series Rotary Tablet Press Machine Automatic Weighing Motor 11KW

    Automatic tablet weighting 370 Series Rotary Tablet Press Machine Motor 11KW


    Applications

    GZPK370 series high-speed rotary tablet press is a new single press high-speed tablet press developed by our company. It has the characteristics of large pressure, novel appearance, reasonable structure, convenient operation & maintenance, stable & reliable operation, varied & comprehensive electrical functions. It meets GMP requirements and is an ideal upgrading model instead of outdated ones.


    Usage:

    This machine is a kind of automatic rotary tablet press, which is suitable for electronic, food, chemical, pharmaceutical and other industries to continuously press various powder or granular raw materials.The machine is suitable for pressing a variety of tablet products, such as medicine tablets, milk tablets, calcium tablets, effervescent tablets and other difficult shaping tablets.


    Main Technical Specifications

    ModelGZPK-26GZPK-32GZPK-40GZPK-44
    Number of Stations26324044
    Tooling StandardDBBBBBS
    Max Main Pressure (KN)80
    Max Pre-pressure (KN)20
    round tablet25181311
    Max Tablet Diameter (mm)irregular tablet25191613
    Max Filling Depth (mm)16
    Max Tablet Thickness (mm)6
    Max Production Capacity (pcs/h)140000192000264000291000
    Motor Power (kw)7.5
    Overall Size (mm)1200×950×1850
    Machine Weight (kg)1700

    Feature

    1. It adopts high pressure structure, main pressure and pre-pressure are both 100KN, adopts force feeder which is suitable for powder direct pressing or pressing difficult forming materials.

    2. Automatic control without handwheel adjustment, servo motor is used to adjust main pressure, pre-pressure and filling quantity.

    3. Single sided output, small occupying area.

    4. Machine outer cover is totally enclosed and made of stainless steel. All the parts in contact with drugs are made of stainless steel or treated with special surface treatment, which are nontoxic, corrosion-resistant and conform to GMP standards.

    5. Tablet compression chamber is closed with transparent plexiglass and stainless steel table, it can be opened completely, which is easy to change mould and maintenance.



    Advantage

    1. CFR211 electronic signature and data export function are optional.

    2. Touch screen and PLC control, easy to operate, various menus, safe and reliable.

    3. Equipped with 11KW high-power motor and high-precision reducer to achieve stable power output
