    TIANHE Effervescent Chewable Vitamin Tablet Automatic Tablet Press Machine 25mm

    Ask Lasest Price
    Brand Name : TIANHE
    Model Number : ZP420
    Certification : GMP, CE , ISO
    • Product Details
    • Company Profile

    TIANHE Effervescent Chewable Vitamin Tablet Automatic Tablet Press Machine 25mm

    Brief Introduction:

    ZP420 series rotary tablet press is a new type of tablet press machine recently developed by our company. It has novel appearance, reasonable structure, convenient operation, stable running, safe & reliable electrical protection functions, and it meets the latest GMP requirement. It is an ideal model choice for upgrading instead of old ones.


    Application:

    This machine is a double-press type continuous automatic tablet press machine for pressing granular raw materials into tablets. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries and suitable for pressing a variety of tablets, such as: medicine tablets, candy tablets, calcium tablets, camphor pills, slat tablets and powder metallurgy products.


    Feature:

    • Double press type with high productivity, suitable for mass production of tablets.
    • HMI operation interface is rich and friendly which can display real-time working pressure, rotating speed, output counter, real-time position of main pressure wheel & filling track, etc.
    • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant.
    • Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
    • The machine is equipped with pressure sensor, which can display the working pressure in real time and the machine can stop automatically in case of overpressure.
    • Speed adjustable, operation simple and running reliable.
    • Adopt automatic lubrication system which can fully lubricate the pressure wheels, tracks and punches, so as to extend the machine service life.
    • Adopt powerful motor and high-precision reducer, achieve high torque stable & strong power output.
    • Various safety protection functions (emergency stop, over-pressure stop, door and window lock-protection)
    • Adopt oil-proof, dust-proof and noise proof design.

    Main technical parameters:

    ModelZP-29ZP-35ZP-39ZP-41
    Number of Stations29353941
    Tooling StandardDBBBBBS
    Max Pressure (KN)120100
    round tablet25181311
    Max Tablet Diameter (mm)irregular tablet25191613
    Max Filling Depth (mm)20181515
    Max Tablet Thickness (mm)8766
    Max Turret Speed (r/min)40
    Max Production Capacity (pcs/h)139200168000187200196800
    Motor Power (kw)7.55.5
    Overall Size (mm)960×1150×1900
    Machine Weight (kg)2000

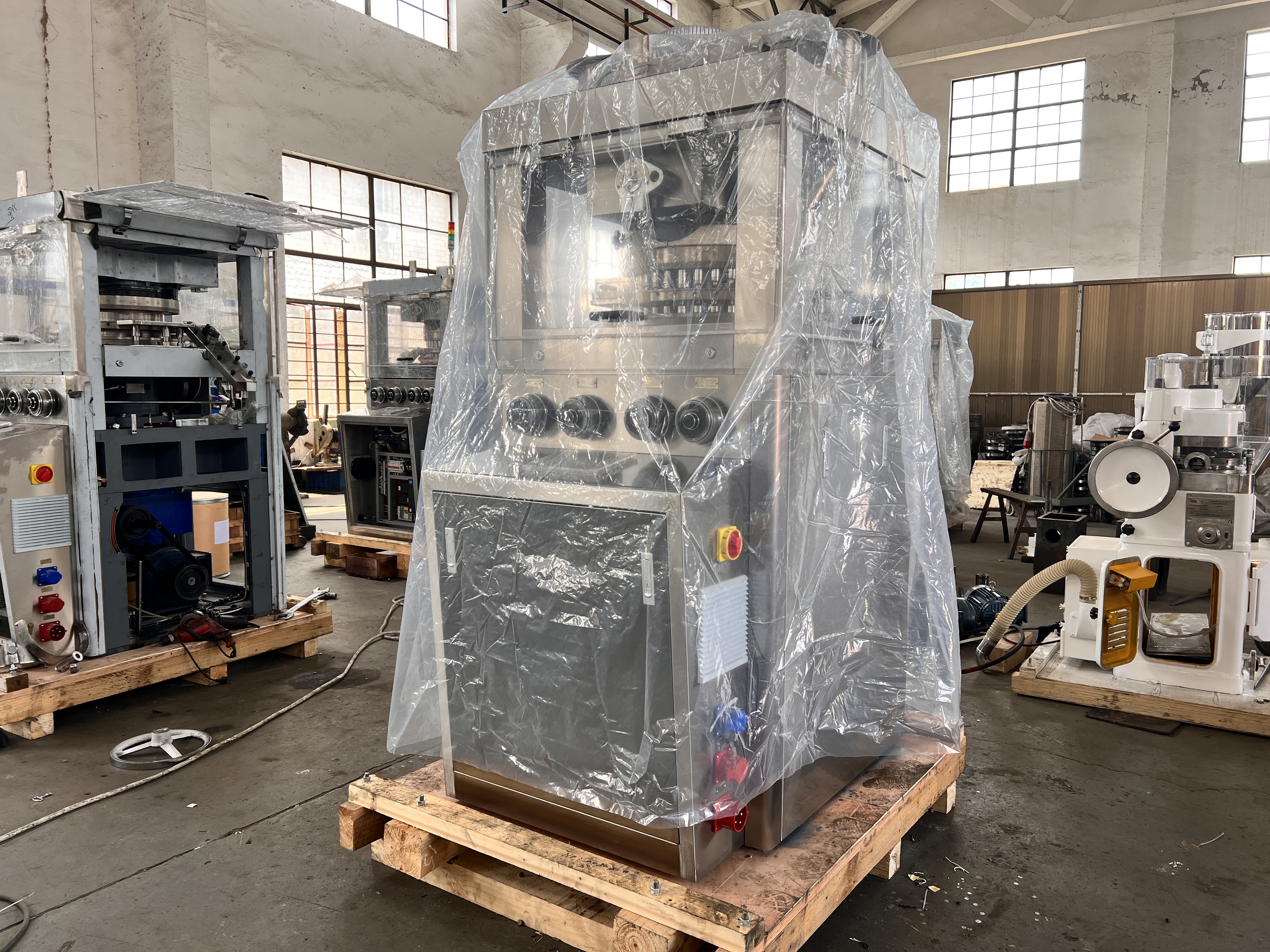

    Machine photo


    Tablet sample



    Our service

    1.1 years warranty for machine, and if machine parts not work because of quality, we can repair and replace parts for free in 1 year.
    2.Control system CD for software in English and with manual.
    3.24 hours technical support by call, email, skype, whatsapp, wechat and so on.
    4.Free training course in our factory
    5.Engineer available to service machinery overseas
