    0.6Mpa 1440L/Min SS Pneumatic Vacuum Conveyor 3000kg/H

    Ask Lasest Price
    Brand Name : Tianhe
    Model Number : QVC-4 Pneumatic Vacuum Conveyer
    Certification : GMP
    • Product Details
    • Company Profile

    0.6Mpa 1440L/Min SS Pneumatic Vacuum Conveyor 3000kg/H

    QVC-4 Stainless-steel Pneumatic Vacuum Conveyer

    Application

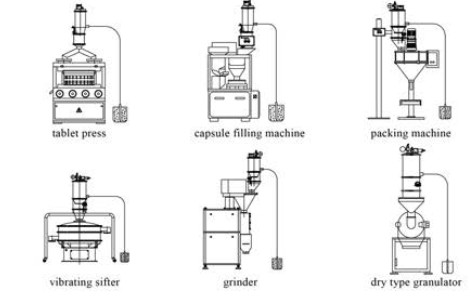

    QVC-4 Stainless-steel Pneumatic Vacuum Conveyer is used in automatic feeding material for t capsule filling machine, packing machine, pulverizing machine and mixing machine. It does not need any mechanical vacuum pump, so it is of simple structure, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. It was designed according to international standard. It is up to GMP requirement.

    Working

    The filter separates materials from air completely. When the chamber is full of materials, the controller will automatically cut off the gas source and vacuum generators stop working. Meanwhile, compressed air cleans the filter automatically throught the pulse back-flushing valve.


    Features

    1. Solves the problem thoroughly about the separating layer of material
    2. Can be removed the material static electricity
    3. Filter is easy to clean
    4. No noise and no screening

    0.6Mpa 1440L/Min SS Pneumatic Vacuum Conveyor 3000kg/H0.6Mpa 1440L/Min SS Pneumatic Vacuum Conveyor 3000kg/H
    Main Technical Specifications:

    ModelTransportation Capacity (kg/h)Air PressureAir ConsumeOverall Size
    (Mpa)(L/min)(mm)
    QVC-13500.4-0.6180140×560
    QVC-27000.4-0.6360213×720
    QVC-315000.4-0.6720290×850
    QVC-430000.4-0.61440420×1150
    QVC-560000.4-0.62880420×1150
    QVC-690000.4-0.64320420×1350


    Packing & Shipping



    Company Information:



    Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

    We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory clients based on detailed URS analysis and mutual communication.

    Through continuous development, we have successively established good trade relations with about 2000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

    Our mission is to provide our customer the most suitable qualified- product with best price and excellent service.

    We are looking forward to building a long term and cooperative relationship with you. Please trust us as your most trustworthy friends!





    FAQ:

    Q: Where is your factory? How can I visit your factory?
    A: Our factory is located In Chongming Shanghai. We warmly welcome you to visit our factory if you have a travel plan.

    Q: How about the after service and guarantee period?
    A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

    Q: How long need to ship the machines after order?
    A:We have ready stock for some model machine. and other machines can be ready and shipped in 15 to 30 days after order!

    Q:How to contact you?
    A: Please leave messages and click "send" to send us inquiries.
