SP series 100W 20 bottle per min highly automated charabash production line

Definition: a Bottle Unscrambler is a machine that scrambles plastic bottles into random objects and regularly arranges them neatly on the conveyor belt to meet the requirements of a high degree of automation. The function of bottle unpacking machine is to sort out the disorderly beverage bottles, and make them arranged in order and direction on the conveyor belt, and transfer them to other machines for the next process (such as filling, labeling, packing, etc.) at high speed and high efficiency, so as to improve the production efficiency of the whole production line.

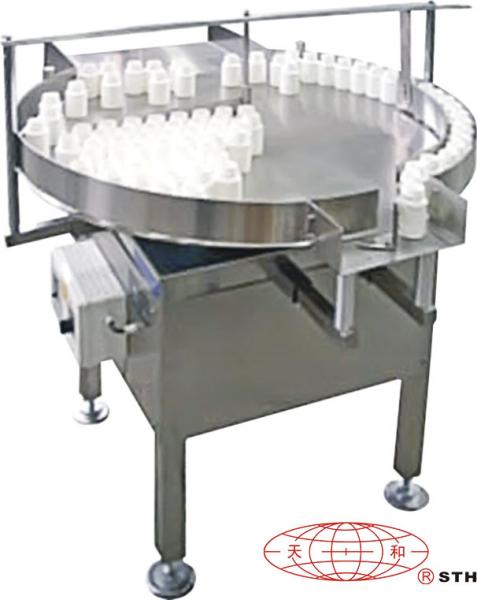

SP Series Bottle Turntable is one part of the filling line equipments. Its responsibility is to feed the bottles into the conveyor in order for further production.

For bottles of different sizes, users may just need to adjust the bottle feeding lanes

Main Technical Specifications

Notes for use of bottle unpacking machine are as follows:

1. Before starting the machine, the compressed air must reach above 0. 6Mpa, and the fan must be opened first to ensure that the air duct is unimpeded.

2, the dial wheel in the occurrence of the bottle, need to reset to the normal position.

3. In case of bottle jamming or bottle squeezing, the host machine is shut down. After cleaning out the bottle mouth and adjusting the dial wheel properly, press the host button again.

4. If the host machine is shut down in the automatic state, please find out the reason if the photoelectric switch of the signal at the wind gate is loose and cannot sense the signal. Only after it is adjusted can it be started again.

5. In the automatic state, the safe door opens and the host stops. After the safe door is closed, the host can be restarted to improve the production efficiency.

6. All parameters have been set. Please do not change them at will

Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand  STH) is formed by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The registered fund is RMB 5,000,000 and the floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".

STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.

STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by itself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.

We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.

STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. To meet the increasing needs of domestic and foreign market, we successively research and develop the following products in compliance with the GMP standard:ZP37 Touch-type Rotary Tablet Press, ZPY100 series Rotary Tablet Press, ZP 35A /B/D rotary Tablet Press, ZPW23 Double-Layers Rotary Tablet Press, ZP11 00 series Economical High-speed Rotary Tablet Press, ZPW25 Triple-layers and Multi-function Rotary Tablet Press, ZPW20 Rotary Core Coated Tablet Press, ZP198 series Rotary Tablet Press, RGY12*25S Soft Gelatin Encapsulation Machine(water cooling type)and ZH90/100 Automatic Cartoning Machine ect.

The above machines have successfully entered domestic and foreign market and obtained the customers approval, ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' ect.

We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing ect. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry. In fact, we have produced the following machines specially for these above industries: YH20 Powder Forming Machine, RP200-1P/RP-300-1P Rotary Shaping Machine and ZP11 Rotary Tablet Press.
